DOC020F-025.0M - Connor Winfield

Name: DOC020F-025.0M
Brand: Connor Winfield
SKU: DOC020F-025.0M
Price: 69.16040 USD
Availability: InStock
Rating: 4.8 (156 reviews)

Connor Winfield DOC020F-025.0M - XTAL OSC OCXO 25.0000MHZ LVCMOS

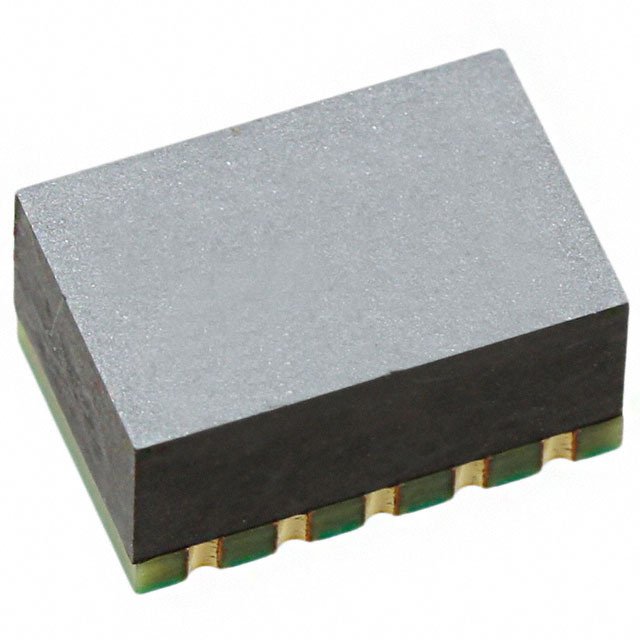

Image is for reference, please contact us to get the real picture

Manufacturer Part Number:	DOC020F-025.0M
Manufacturer:	Connor Winfield
Part of Description:	XTAL OSC OCXO 25.0000MHZ LVCMOS
Lead Free Status / RoHS Status:	Lead Free / RoHS Compliant
Stock Condition:	120 In Stock
Ship From:	Hong Kong
Shipment Way:	DHL/Fedex/TNT/UPS/EMS

REMARK: Buy the DOC020F-025.0M Connor Winfield on xunyun-ic.com, For over 45 years, The Connor Winfield Corporation has designed and manufactured quartz based timing circuits and oscillators. As a leading US manufacturer of oscillators and timing products, Connor Winfield continually innovates to bring new crystal and non-crystal based oscillator products to the ...

Specification

Type	Description
Series	DOC
Package	Tape & Reel (TR)
Part Status	Active
Base Resonator	Crystal
Type	OCXO
Frequency	25 MHz
Function	-
Output	LVCMOS
Voltage - Supply	3.3V
Frequency Stability	±20ppb
Absolute Pull Range (APR)	-
Operating Temperature	0°C ~ 70°C
Spread Spectrum Bandwidth	-
Current - Supply (Max)	-
Ratings	-
Mounting Type	Surface Mount
Package / Case	6-SMD, No Lead
Size / Dimension	0.555" L x 0.358" W (14.10mm x 9.10mm)
Height - Seated (Max)	0.307" (7.80mm)
