TB522-100.0M - Connor Winfield

Name: TB522-100.0M
Brand: Connor Winfield
SKU: TB522-100.0M
Price: 19.50000 USD
Availability: InStock
Rating: 4.8 (156 reviews)

Connor Winfield TB522-100.0M - XTAL OSC TCXO 100.0000MHZ LVCMOS

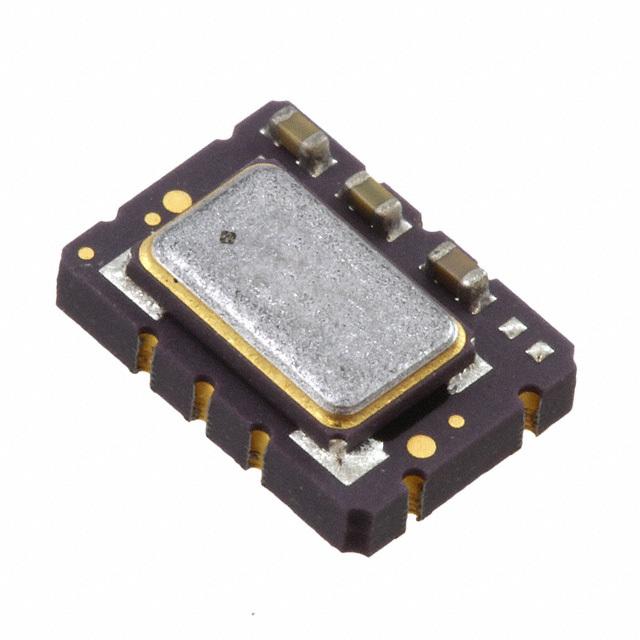

Image is for reference, please contact us to get the real picture

Manufacturer Part Number:	TB522-100.0M
Manufacturer:	Connor Winfield
Part of Description:	XTAL OSC TCXO 100.0000MHZ LVCMOS
Lead Free Status / RoHS Status:	Lead Free / RoHS Compliant
Stock Condition:	289 In Stock
Ship From:	Hong Kong
Shipment Way:	DHL/Fedex/TNT/UPS/EMS

REMARK: Buy the TB522-100.0M Connor Winfield on xunyun-ic.com, For over 45 years, The Connor Winfield Corporation has designed and manufactured quartz based timing circuits and oscillators. As a leading US manufacturer of oscillators and timing products, Connor Winfield continually innovates to bring new crystal and non-crystal based oscillator products to the ...

Specification

Type	Description
Series	TB
Package	Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part Status	Active
Base Resonator	Crystal
Type	TCXO
Frequency	100 MHz
Function	Enable/Disable
Output	LVCMOS
Voltage - Supply	3.3V
Frequency Stability	±1ppm
Absolute Pull Range (APR)	-
Operating Temperature	0°C ~ 70°C
Spread Spectrum Bandwidth	-
Current - Supply (Max)	12mA
Ratings	-
Mounting Type	Surface Mount
Package / Case	10-SMD, No Lead
Size / Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)	0.094" (2.40mm)
