CWX813-012.0M - Connor Winfield

Name: CWX813-012.0M
Brand: Connor Winfield
SKU: CWX813-012.0M
Price: 2.35000 USD
Availability: InStock
Rating: 4.8 (156 reviews)

Connor Winfield CWX813-012.0M - XTAL OSC XO 12.0000MHZ LVCMOS

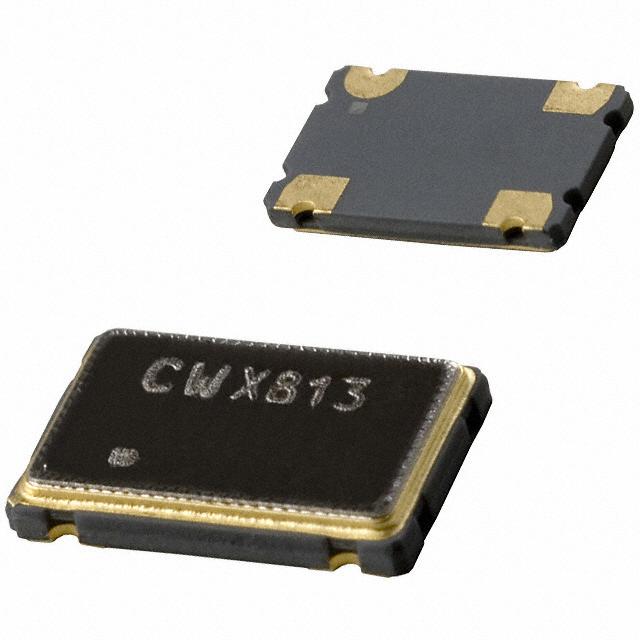

Image is for reference, please contact us to get the real picture

Manufacturer Part Number:	CWX813-012.0M
Manufacturer:	Connor Winfield
Part of Description:	XTAL OSC XO 12.0000MHZ LVCMOS
Lead Free Status / RoHS Status:	Lead Free / RoHS Compliant
Stock Condition:	2165 In Stock
Ship From:	Hong Kong
Shipment Way:	DHL/Fedex/TNT/UPS/EMS

REMARK: Buy the CWX813-012.0M Connor Winfield on xunyun-ic.com, For over 45 years, The Connor Winfield Corporation has designed and manufactured quartz based timing circuits and oscillators. As a leading US manufacturer of oscillators and timing products, Connor Winfield continually innovates to bring new crystal and non-crystal based oscillator products to the ...

Specification

Type	Description
Series	CWX813
Package	Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part Status	Active
Base Resonator	Crystal
Type	XO (Standard)
Frequency	12 MHz
Function	Enable/Disable
Output	LVCMOS
Voltage - Supply	3.3V
Frequency Stability	±25ppm
Absolute Pull Range (APR)	-
Operating Temperature	-20°C ~ 70°C
Spread Spectrum Bandwidth	-
Current - Supply (Max)	30mA
Ratings	-
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)	0.051" (1.30mm)
