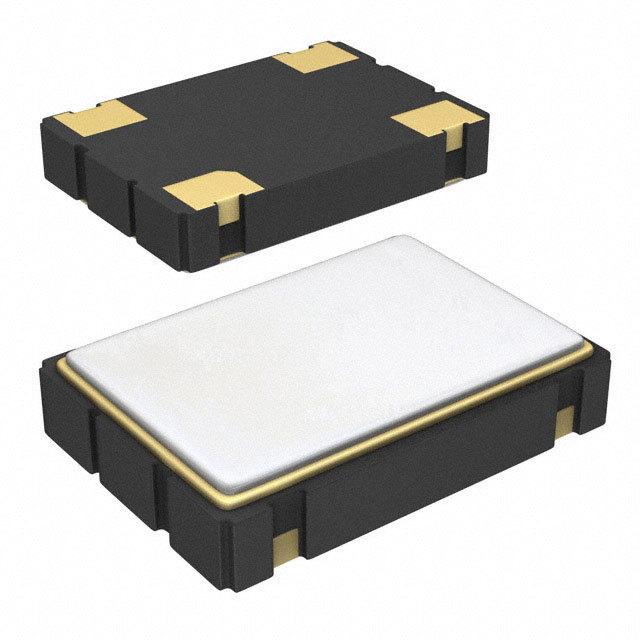

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SG-8101CA 69.120000 MHZ TBGPA |
| Manufacturer: | Epson |
| Part of Description: | XTAL OSC XO 69.1200MHZ CMOS SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2302 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | SG-8101CA |
| Package | Bulk |
| Part Status | Active |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 69.12 MHz |
| Function | Enable/Disable |
| Output | CMOS |
| Voltage - Supply | 1.8V |
| Frequency Stability | ±15ppm |
| Absolute Pull Range (APR) | ±100ppm |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 8.1mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.055" (1.40mm) |
Stock Status: 2302
Minimum: 1
Price: $2.21380
