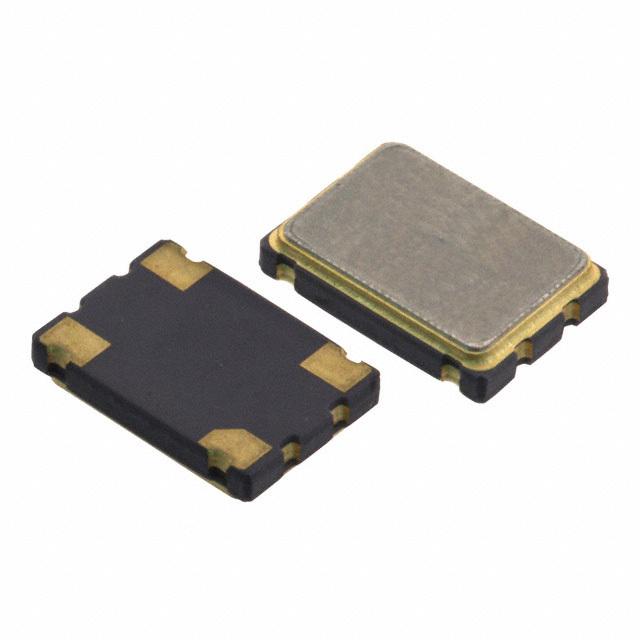

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 7W-22.5792MBD-T |
| Manufacturer: | TXC Corporation |
| Part of Description: | XTAL OSC XO 22.5792MHZ CMOS SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 4869 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 7W |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 22.5792 MHz |
| Function | Enable/Disable |
| Output | CMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±25ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 20mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.056" (1.42mm) |
Stock Status: 4869
Minimum: 1
Price: $1.03545
