HSM536-20.0000 - Connor Winfield

Name: HSM536-20.0000
Brand: Connor Winfield
SKU: HSM536-20.0000
Price: 6.40000 USD
Availability: InStock
Rating: 4.8 (156 reviews)

Connor Winfield HSM536-20.0000 - XTAL OSC XO 20.0000MHZ HCMOS SMD

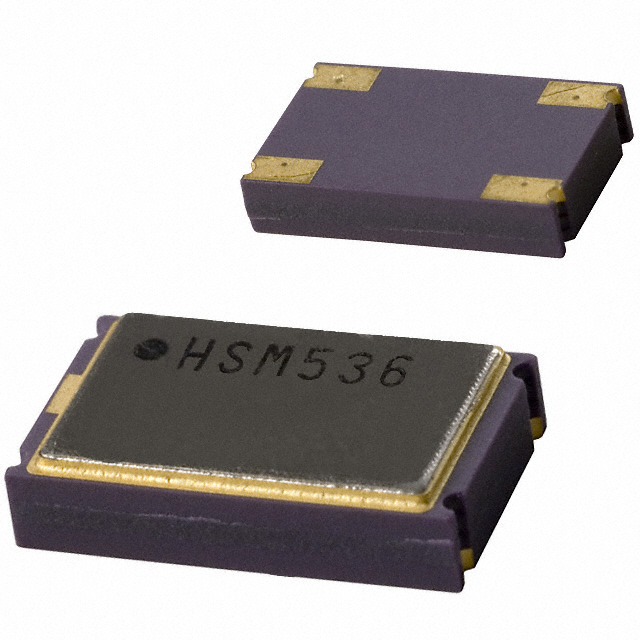

Image is for reference, please contact us to get the real picture

Manufacturer Part Number:	HSM536-20.0000
Manufacturer:	Connor Winfield
Part of Description:	XTAL OSC XO 20.0000MHZ HCMOS SMD
Lead Free Status / RoHS Status:	Lead Free / RoHS Compliant
Stock Condition:	822 In Stock
Ship From:	Hong Kong
Shipment Way:	DHL/Fedex/TNT/UPS/EMS

REMARK: Buy the HSM536-20.0000 Connor Winfield on xunyun-ic.com, For over 45 years, The Connor Winfield Corporation has designed and manufactured quartz based timing circuits and oscillators. As a leading US manufacturer of oscillators and timing products, Connor Winfield continually innovates to bring new crystal and non-crystal based oscillator products to the ...

Specification

Type	Description
Series	HSM536
Package	Tube
Part Status	Active
Base Resonator	Crystal
Type	XO (Standard)
Frequency	20 MHz
Function	Enable/Disable
Output	HCMOS
Voltage - Supply	5V
Frequency Stability	±100ppm
Absolute Pull Range (APR)	-
Operating Temperature	0°C ~ 70°C
Spread Spectrum Bandwidth	-
Current - Supply (Max)	30mA
Ratings	-
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.435" L x 0.250" W (11.05mm x 6.35mm)
Height - Seated (Max)	0.105" (2.67mm)
