SG-9101CA 15.6240M-C20PHAAA5 - Epson

Name: SG-9101CA 15.6240M-C20PHAAA5
Brand: Epson
SKU: SG-9101CA 15.6240M-C20PHAAA5
Price: 3.98160 USD
Availability: InStock
Rating: 4.8 (156 reviews)

Epson SG-9101CA 15.6240M-C20PHAAA5 - XTAL OSC XO 15.6240MHZ CMOS SMD

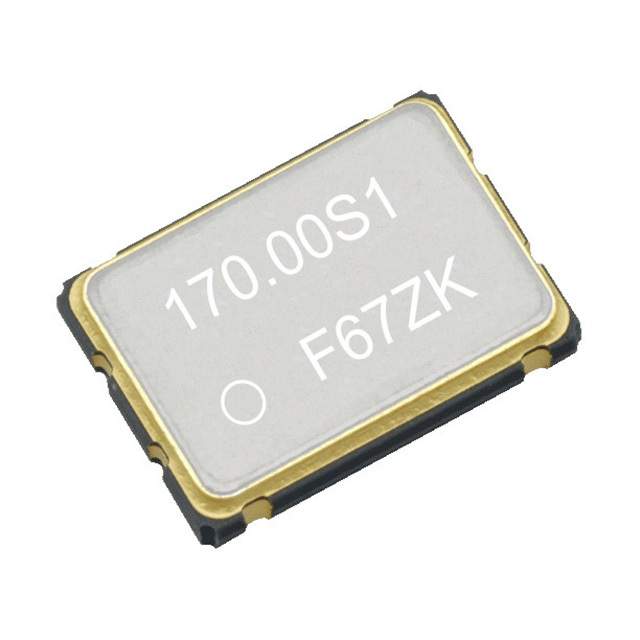

Image is for reference, please contact us to get the real picture

Manufacturer Part Number:	SG-9101CA 15.6240M-C20PHAAA5
Manufacturer:	Epson
Part of Description:	XTAL OSC XO 15.6240MHZ CMOS SMD
Lead Free Status / RoHS Status:	Lead Free / RoHS Compliant
Stock Condition:	1294 In Stock
Ship From:	Hong Kong
Shipment Way:	DHL/Fedex/TNT/UPS/EMS

REMARK: Buy the SG-9101CA 15.6240M-C20PHAAA5 Epson on xunyun-ic.com, Epson integrates American marketing, sales, and engineering expertise with Japanese manufacturing prowess to bring a "best-of-class" level of service to our customers. Epson's proximity to leaders in the high-tech industry, easy access to the developmental resources of Epson Research and Development...

Specification

Type	Description
Series	SG-9101
Package	Tape & Reel (TR)
Part Status	Active
Base Resonator	Crystal
Type	XO (Standard)
Frequency	15.624 MHz
Function	Enable/Disable
Output	CMOS
Voltage - Supply	1.62V ~ 3.63V
Frequency Stability	-
Absolute Pull Range (APR)	-
Operating Temperature	-40°C ~ 105°C
Spread Spectrum Bandwidth	±2.00%, Center Spread
Current - Supply (Max)	8.3mA
Ratings	-
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)	0.055" (1.40mm)
