CWX815-29.4912M - Connor Winfield

Name: CWX815-29.4912M
Brand: Connor Winfield
SKU: CWX815-29.4912M
Price: 1.72550 USD
Availability: InStock
Rating: 4.8 (156 reviews)

Connor Winfield CWX815-29.4912M - XTAL OSC XO 29.4912MHZ HCMOS SMD

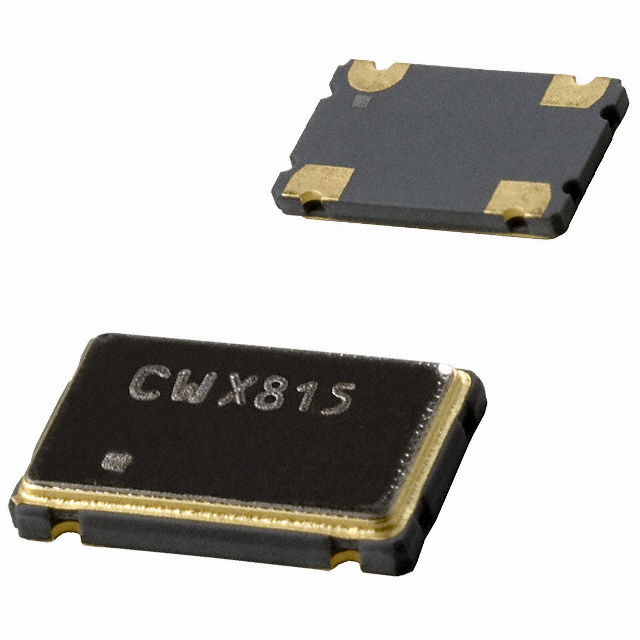

Image is for reference, please contact us to get the real picture

Manufacturer Part Number:	CWX815-29.4912M
Manufacturer:	Connor Winfield
Part of Description:	XTAL OSC XO 29.4912MHZ HCMOS SMD
Lead Free Status / RoHS Status:	Lead Free / RoHS Compliant
Stock Condition:	2946 In Stock
Ship From:	Hong Kong
Shipment Way:	DHL/Fedex/TNT/UPS/EMS

REMARK: Buy the CWX815-29.4912M Connor Winfield on xunyun-ic.com, For over 45 years, The Connor Winfield Corporation has designed and manufactured quartz based timing circuits and oscillators. As a leading US manufacturer of oscillators and timing products, Connor Winfield continually innovates to bring new crystal and non-crystal based oscillator products to the ...

Specification

Type	Description
Series	CWX815
Package	Tape & Reel (TR)
Part Status	Active
Base Resonator	Crystal
Type	XO (Standard)
Frequency	29.4912 MHz
Function	Enable/Disable
Output	HCMOS
Voltage - Supply	5V
Frequency Stability	±25ppm
Absolute Pull Range (APR)	-
Operating Temperature	-20°C ~ 70°C
Spread Spectrum Bandwidth	-
Current - Supply (Max)	45mA
Ratings	-
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)	0.051" (1.30mm)
