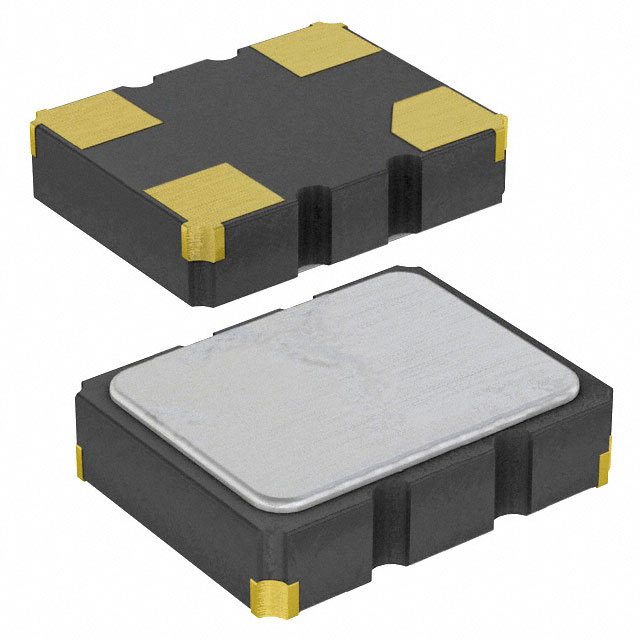

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 520R15CT38M4000 |
| Manufacturer: | CTS Corporation |
| Part of Description: | XTAL OSC TCXO 38.4000MHZ SNWV |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2453 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 520 |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Base Resonator | Crystal |
| Type | TCXO |
| Frequency | 38.4 MHz |
| Function | - |
| Output | Clipped Sine Wave |
| Voltage - Supply | 3V |
| Frequency Stability | ±1.5ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 2.5mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
