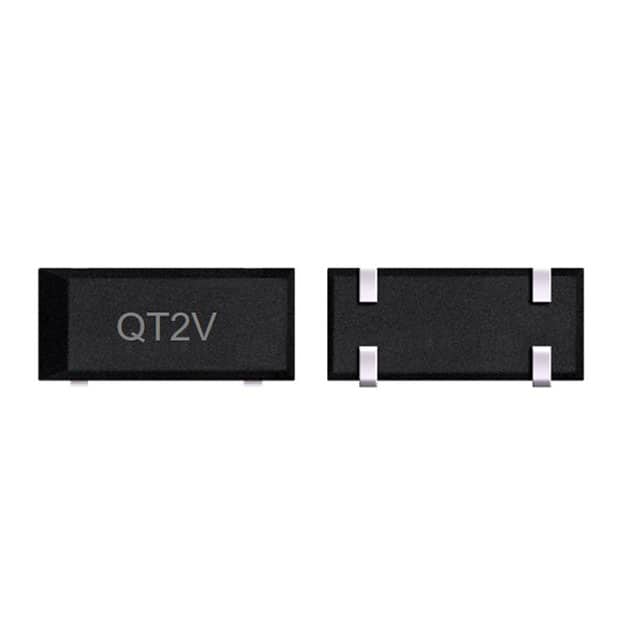

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | QT2V-77.503KAZF-T |
| Manufacturer: | QST |
| Part of Description: | 8.0X3.8 - 77.503KHZ 30PPM @25C 1 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 7214 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | QT2V |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Type | kHz Crystal (Tuning Fork) |
| Frequency | 77.503 kHz |
| Frequency Stability | - |
| Frequency Tolerance | ±30ppm |
| Load Capacitance | 12.5pF |
| ESR (Equivalent Series Resistance) | 50 kOhms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, J-Lead |
| Size / Dimension | 0.315" L x 0.150" W (8.00mm x 3.80mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
Stock Status: 7214
Minimum: 1
Price: $0.69660
