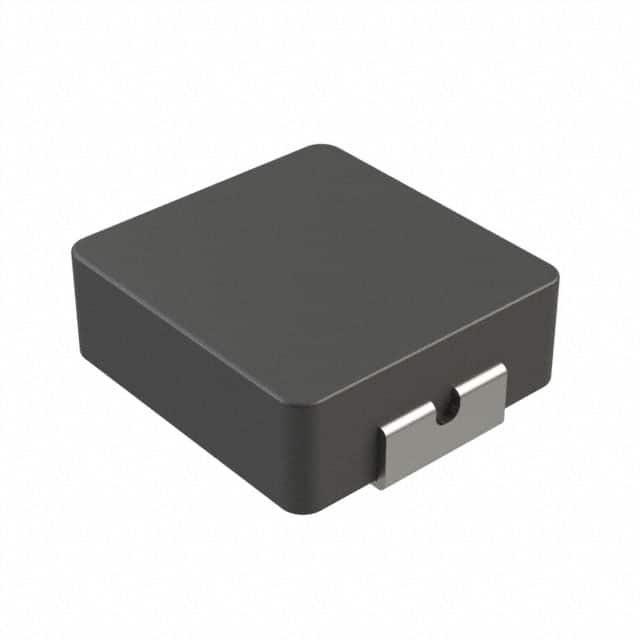

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | PM4546.361NLT |
| Manufacturer: | PulseLarsen Antenna |
| Part of Description: | FIXED IND 360NH 6.5A 18 MOHM SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 7016 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | PM4546.XXXNLT |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 360 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.5 A |
| Current - Saturation (Isat) | 8.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 18mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Stock Status: 7016
Minimum: 1
Price: $0.71610
