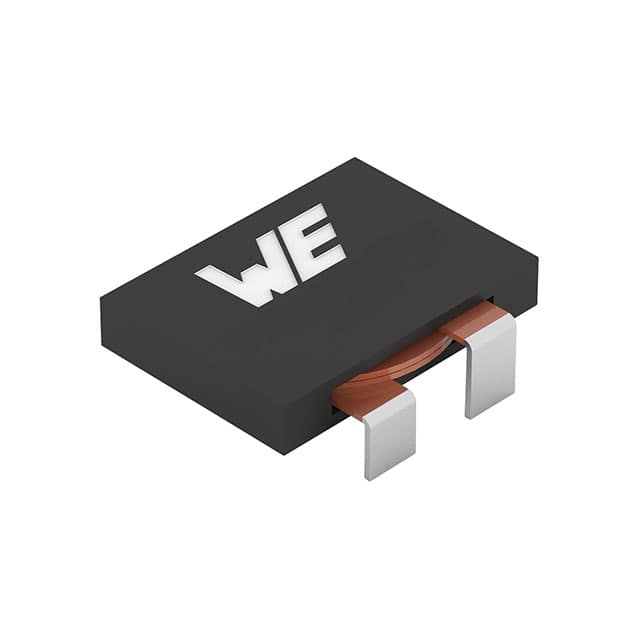

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 7443762504100 |
| Manufacturer: | Würth Elektronik Midcom |
| Part of Description: | FIXED IND 10UH 20A 4.63 MOHM TH |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1026 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | WE-HCFT |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 20 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.63mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 8.4MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.992" L x 0.866" W (25.20mm x 22.00mm) |
| Height - Seated (Max) | 0.161" (4.10mm) |
Stock Status: 1026
Minimum: 1
Price: $5.03000
