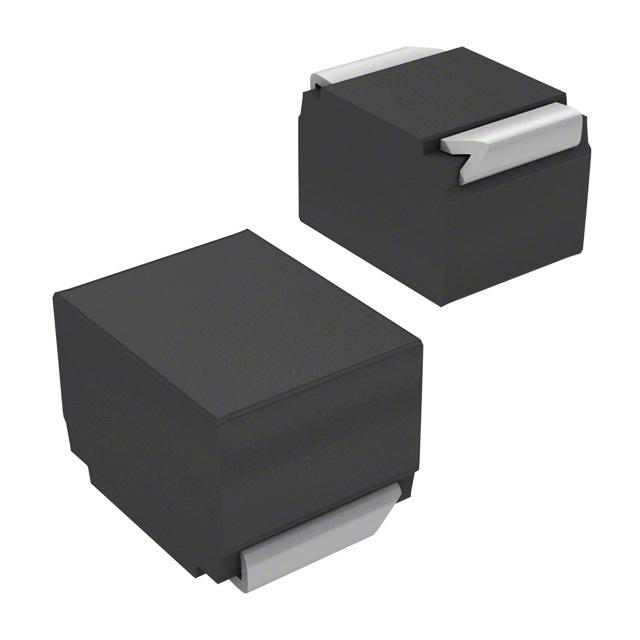

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | B82422T1271K000 |
| Manufacturer: | TDK EPCOS |
| Part of Description: | FIXED IND 270NH 450MA 210 MOHM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 23973 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | SIMID |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 270 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 450 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 210mOhm Max |
| Q @ Freq | 30 @ 25.2MHz |
| Frequency - Self Resonant | 500MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 25.2 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | 1210 (3225 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
Stock Status: 23973
Minimum: 1
Price: $0.20886
