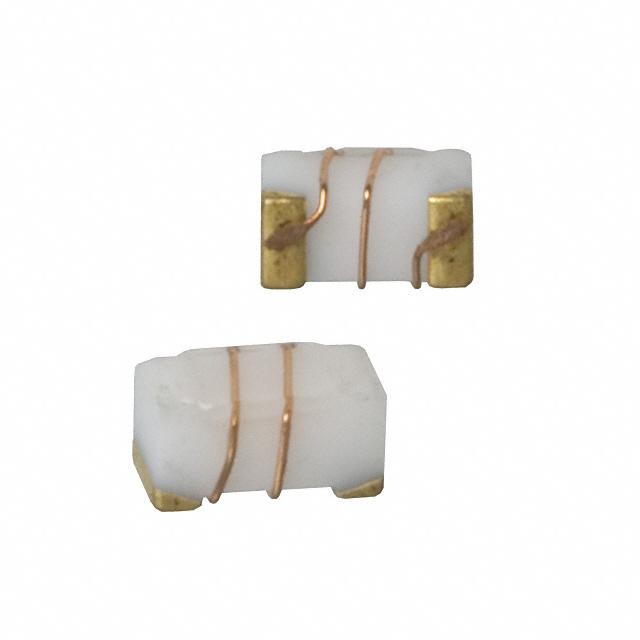

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | PE-0603CD060GTT |
| Manufacturer: | PulseLarsen Antenna |
| Part of Description: | FIXED IND 6.68NH 700MA 110 MOHM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 12548 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 0603CD |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 6.68 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 700 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 110mOhm Max |
| Q @ Freq | 25 @ 250MHz |
| Frequency - Self Resonant | 5.8GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.071" L x 0.049" W (1.80mm x 1.24mm) |
| Height - Seated (Max) | 0.040" (1.02mm) |
Stock Status: 12548
Minimum: 1
Price: $0.40000
