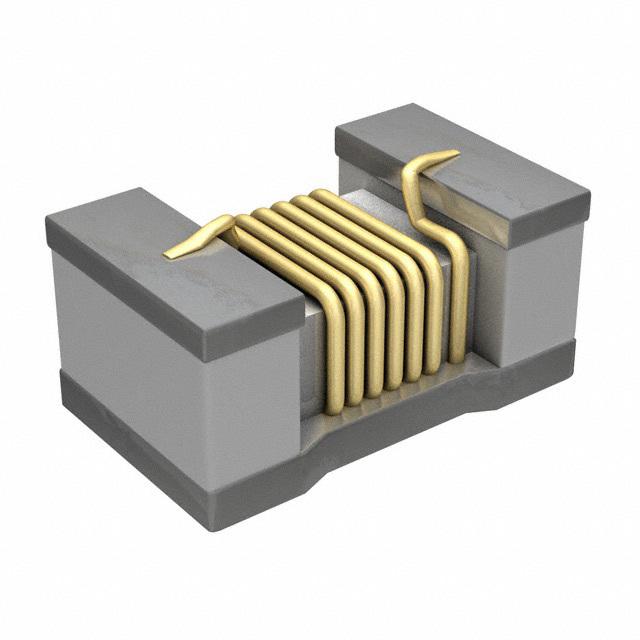

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | LQW15AN6N4J80D |
| Manufacturer: | TOKO / Murata |
| Part of Description: | FIXED IND 6.4NH 1.38A 65 MOHM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 74438 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | LQW15 |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 6.4 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 1.38 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 65mOhm Max |
| Q @ Freq | 33 @ 250MHz |
| Frequency - Self Resonant | 7GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.039" L x 0.024" W (1.00mm x 0.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
Stock Status: 74438
Minimum: 1
Price: $0.06720
