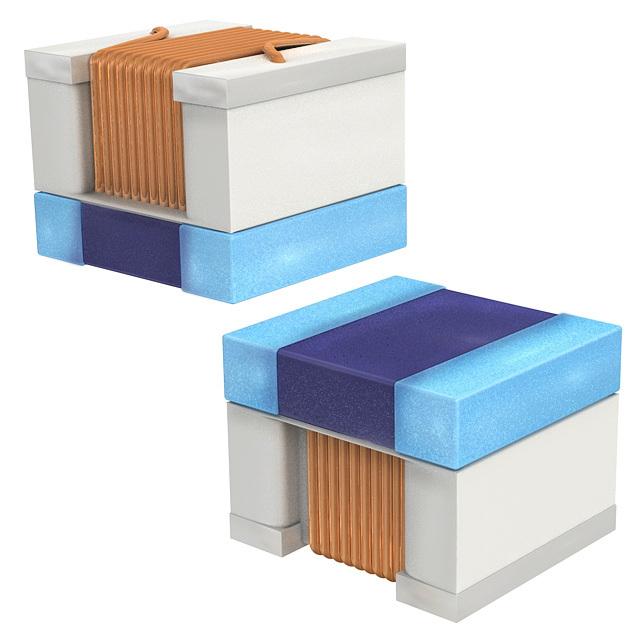

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | LQW2UASR27J00L |
| Manufacturer: | TOKO / Murata |
| Part of Description: | FIXED IND 270NH 500MA 910 MOHM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 22760 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | LQW2 |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Air |
| Inductance | 270 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 500 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 910mOhm Max |
| Q @ Freq | 45 @ 100MHz |
| Frequency - Self Resonant | 600MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.103" L x 0.096" W (2.62mm x 2.45mm) |
| Height - Seated (Max) | 0.080" (2.03mm) |
Stock Status: 22760
Minimum: 1
Price: $0.22000
