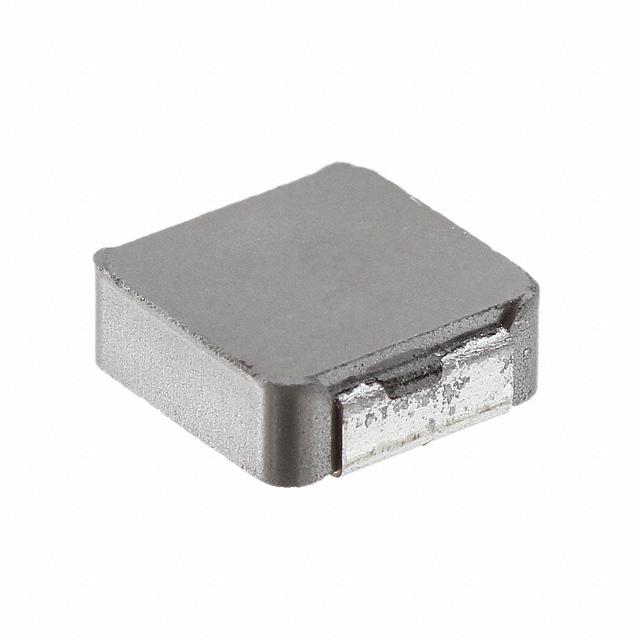

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | IHLP3232CZER1R0M01 |
| Manufacturer: | Vishay / Dale |
| Part of Description: | FIXED IND 1UH 13.7A 8.35 MOHM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 8059 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | IHLP-3232CZ-01 |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 13.7 A |
| Current - Saturation (Isat) | 29A |
| Shielding | Shielded |
| DC Resistance (DCR) | 8.35mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 51MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.340" L x 0.322" W (8.64mm x 8.18mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Stock Status: 8059
Minimum: 1
Price: $0.62400
