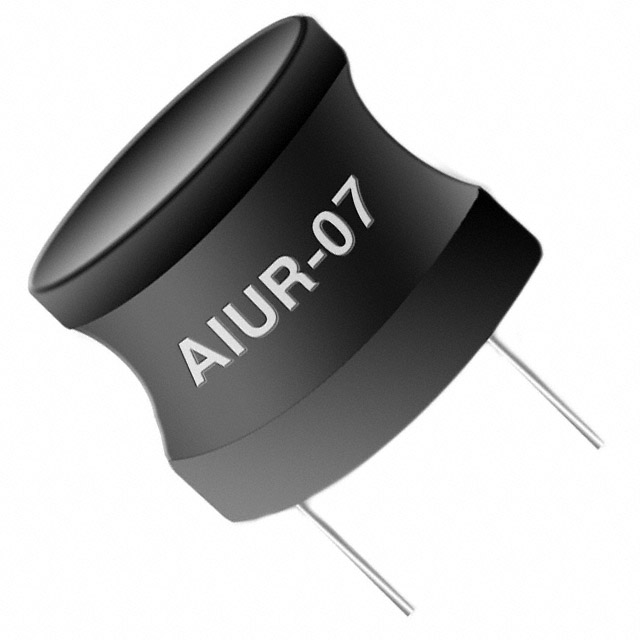

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | AIUR-07-102K |
| Manufacturer: | Abracon |
| Part of Description: | FIXED IND 1MH 100MA 6.3 OHM TH |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 15361 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | AIUR-07 |
| Package | Bulk |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 100 mA |
| Current - Saturation (Isat) | 150mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6.3Ohm Max |
| Q @ Freq | 60 @ 1kHz |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 85°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.236" Dia (6.00mm) |
| Height - Seated (Max) | 0.201" (5.10mm) |
Stock Status: 15361
Minimum: 1
Price: $0.32640
