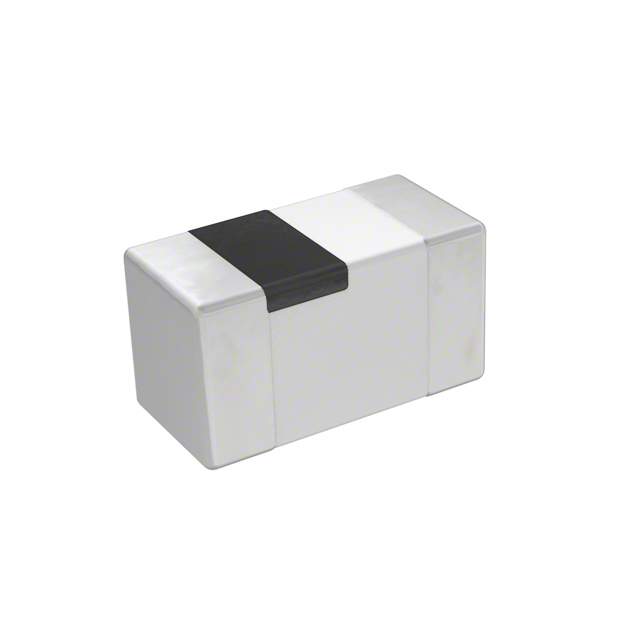

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | MLG0603P3N7BTD25 |
| Manufacturer: | TDK Corporation |
| Part of Description: | FIXED IND 3.7NH 400MA 200 MOHM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 128581 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | MLG-P |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Type | Multilayer |
| Material - Core | Non-Magnetic |
| Inductance | 3.7 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | 14 @ 500MHz |
| Frequency - Self Resonant | 6.5GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) |
Stock Status: 128581
Minimum: 1
Price: $0.03890
