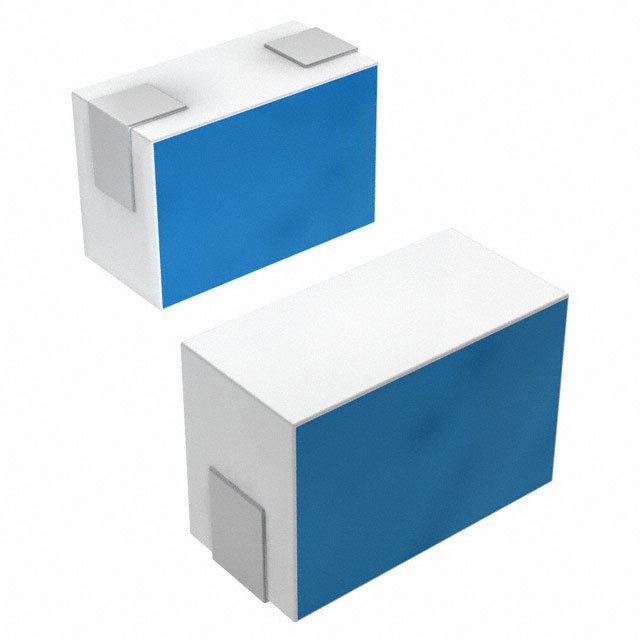

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | LQP03TQ2N4B02D |
| Manufacturer: | TOKO / Murata |
| Part of Description: | FIXED IND 2.4NH 550MA 150 MOHM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 50031 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | LQP03 |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Not For New Designs |
| Type | Thick Film |
| Material - Core | Non-Magnetic |
| Inductance | 2.4 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 550 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 150mOhm Max |
| Q @ Freq | 17 @ 500MHz |
| Frequency - Self Resonant | 11GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) |
Stock Status: 50031
Minimum: 1
Price: $0.10000
