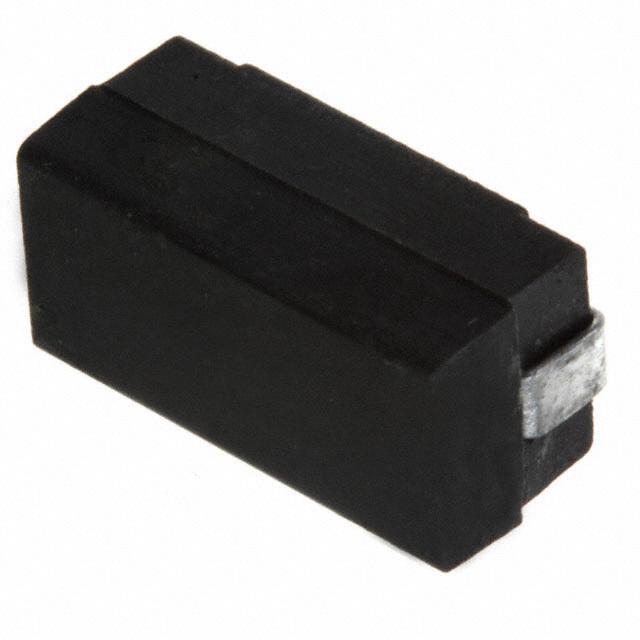

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 5022-683H |
| Manufacturer: | API Delevan |
| Part of Description: | FIXED IND 68UH 320MA 3.3 OHM SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1666 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 5022 |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Type | - |
| Material - Core | Iron |
| Inductance | 68 µH |
| Tolerance | ±3% |
| Current Rating (Amps) | 320 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.3Ohm Max |
| Q @ Freq | 55 @ 2.5MHz |
| Frequency - Self Resonant | 11MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 2.5 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Height - Seated (Max) | 0.230" (5.80mm) |
Stock Status: 1666
Minimum: 1
Price: $3.09063
