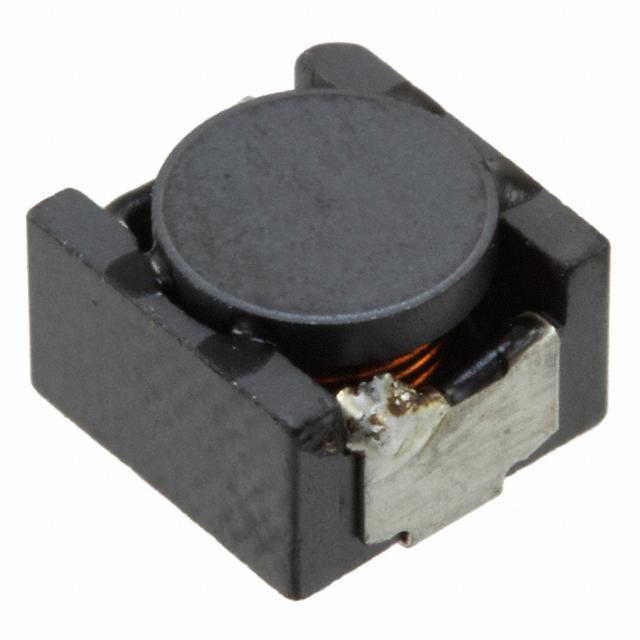

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | RLF7045T-121MR55-D |
| Manufacturer: | TDK Corporation |
| Part of Description: | FIXED IND 120UH 550MA 480 MOHM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1847 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | RLF-D |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Not For New Designs |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 120 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 550 mA |
| Current - Saturation (Isat) | 800mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 480mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.268" W (7.30mm x 6.80mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
Stock Status: 1847
Minimum: 1
Price: $2.77000
