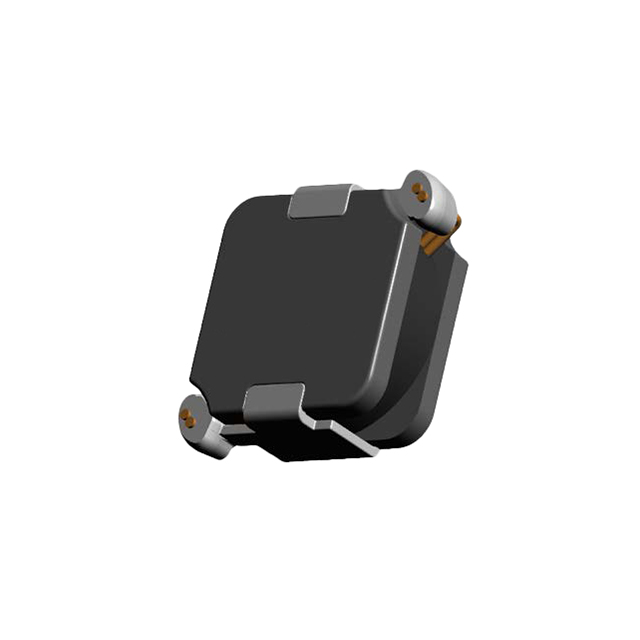

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | ASPIAIG-H6530-R75M-T |
| Manufacturer: | Abracon |
| Part of Description: | FIXED IND 750NH 13.45A 8.7 MOHM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1335 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | ASPIAIG-H6530 |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Obsolete |
| Type | Wirewound |
| Material - Core | Metal |
| Inductance | 750 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 13.45 A |
| Current - Saturation (Isat) | 15.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 8.7mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 55MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.280" L x 0.256" W (7.10mm x 6.50mm) |
| Height - Seated (Max) | 0.126" (3.20mm) |
Stock Status: 1335
Minimum: 1
Call for price or submit a RFQ
