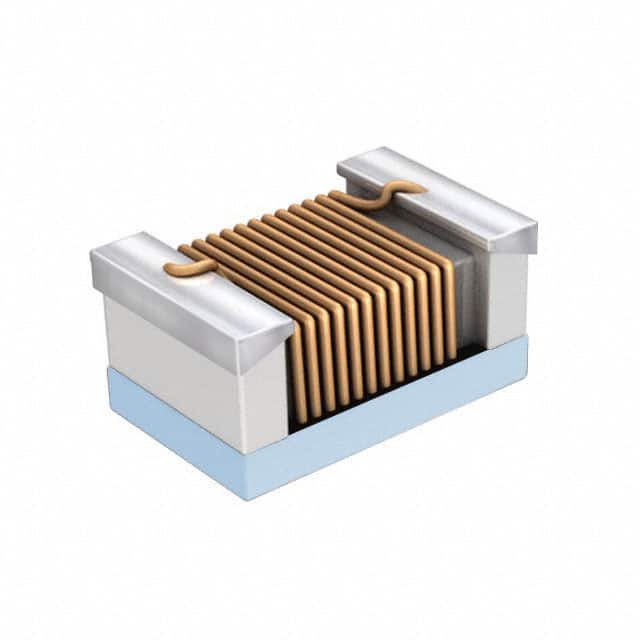

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 0402HM-400EKTS |
| Manufacturer: | Delta Electronics |
| Part of Description: | FIXED IND 40NH 250MA 700MOHM SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 20876 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 0402HM |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 40 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 250 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 700mOhm |
| Q @ Freq | 25 @ 250MHz |
| Frequency - Self Resonant | 3GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.045" L x 0.028" W (1.15mm x 0.70mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
Stock Status: 20876
Minimum: 1
Price: $0.24000
