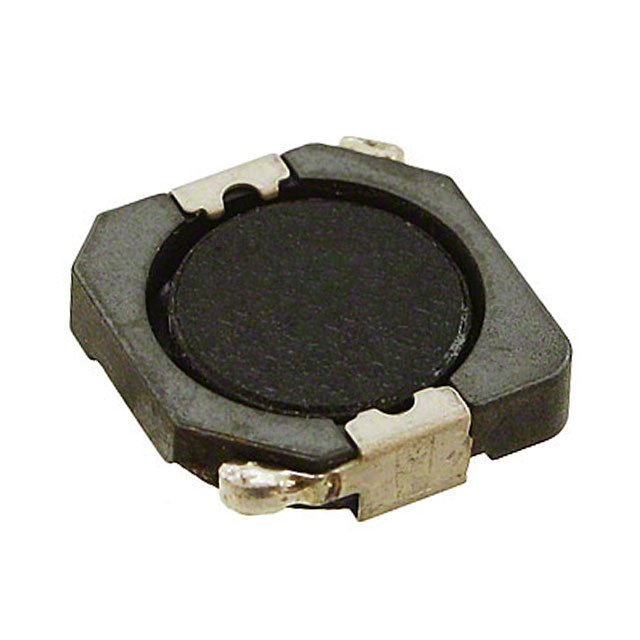

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 7447713082 |
| Manufacturer: | Würth Elektronik Midcom |
| Part of Description: | FIXED IND 8.2UH 3A 49 MOHM SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2421 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | WE-PD Performance |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 8.2 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3 A |
| Current - Saturation (Isat) | 4.7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 49mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 30MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Stock Status: 2421
Minimum: 1
Price: $2.10000
