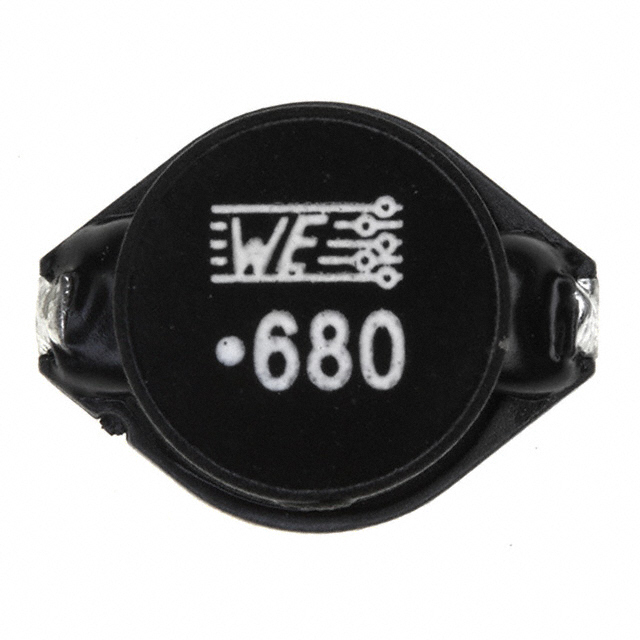

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 74458168 |
| Manufacturer: | Würth Elektronik Midcom |
| Part of Description: | FIXED IND 68UH 2.3A 130 MOHM SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2900 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | WE-PD4 |
| Package | Tape & Reel (TR)Cut Tape (CT) |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.3 A |
| Current - Saturation (Isat) | 3.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 130mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 7.2MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.730" L x 0.600" W (18.54mm x 15.24mm) |
| Height - Seated (Max) | 0.280" (7.11mm) |
Stock Status: 2900
Minimum: 1
Price: $1.74700
