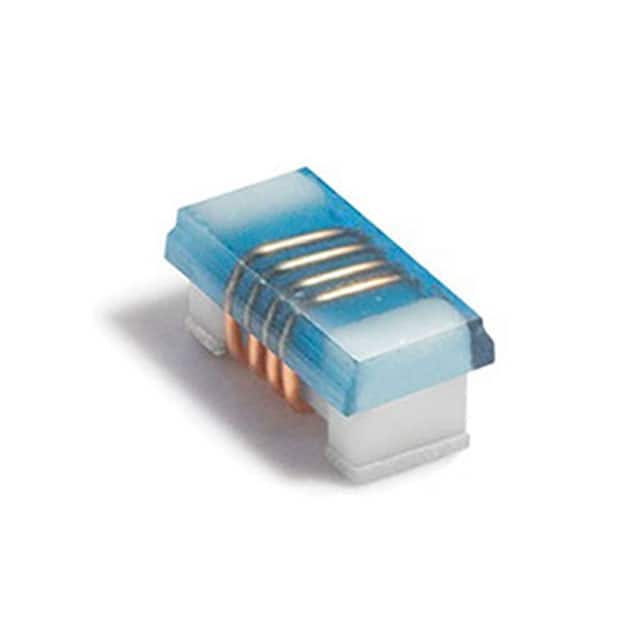

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 0603DC-30NXJRW |
| Manufacturer: | COILCRAFT |
| Part of Description: | CERAMIC CHIP INDUCTORS 30NH |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 5665 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 0603DC |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 30 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 1.73 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 103mOhm Max |
| Q @ Freq | 77 @ 900MHz |
| Frequency - Self Resonant | 3GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.067" L x 0.039" W (1.70mm x 0.99mm) |
| Height - Seated (Max) | 0.035" (0.89mm) |
Stock Status: 5665
Minimum: 1
Price: $0.89000
