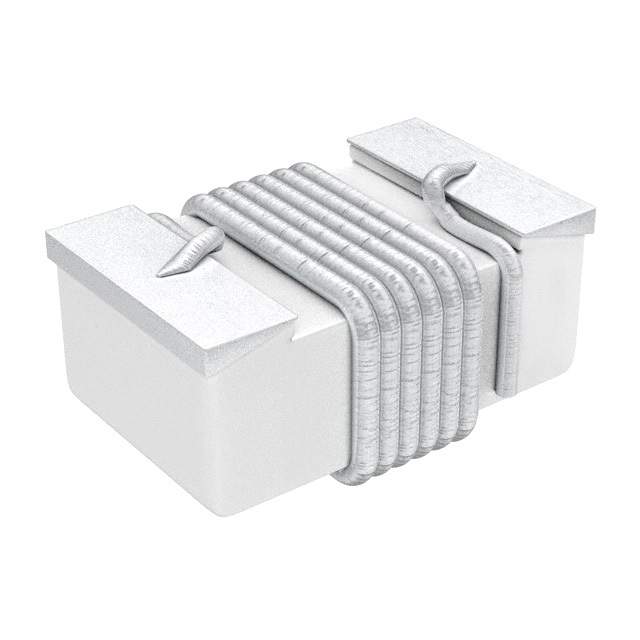

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 55081813400 |
| Manufacturer: | Sumida Corporation |
| Part of Description: | FIXED IND 180NH 260MA 470 MOHM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 31526 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 5508 |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 180 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 260 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 470mOhm Max |
| Q @ Freq | 35 @ 100MHz |
| Frequency - Self Resonant | 1.03GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.087" L x 0.055" W (2.20mm x 1.40mm) |
| Height - Seated (Max) | 0.056" (1.42mm) |
Stock Status: 31526
Minimum: 1
Price: $0.15878
