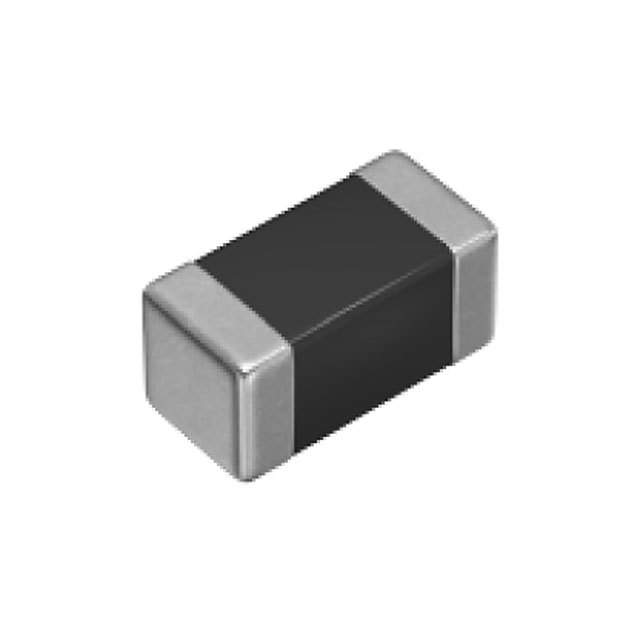

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | KLZ2012NHR101LTD25 |
| Manufacturer: | TDK Corporation |
| Part of Description: | FIXED IND 100UH 140MA 4.55 OHM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 16715 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | KLZ-HR |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 140 mA |
| Current - Saturation (Isat) | 30mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.55Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 2 MHz |
| Features | Soft Termination |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.057" (1.45mm) |
Stock Status: 16715
Minimum: 1
Price: $0.30000
