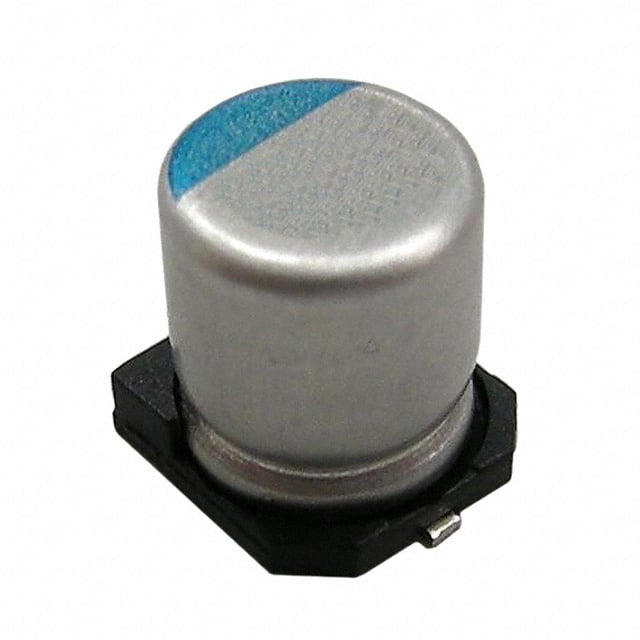

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | APXJ250ARA560MF61G |
| Manufacturer: | United Chemi-Con |
| Part of Description: | CAP ALUM POLY 56UF 20% 25V SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 5466 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | NPCAP™-PXJ |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Polymer |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 28mOhm |
| Lifetime @ Temp. | 15000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Stock Status: 5466
Minimum: 1
Price: $0.92000
