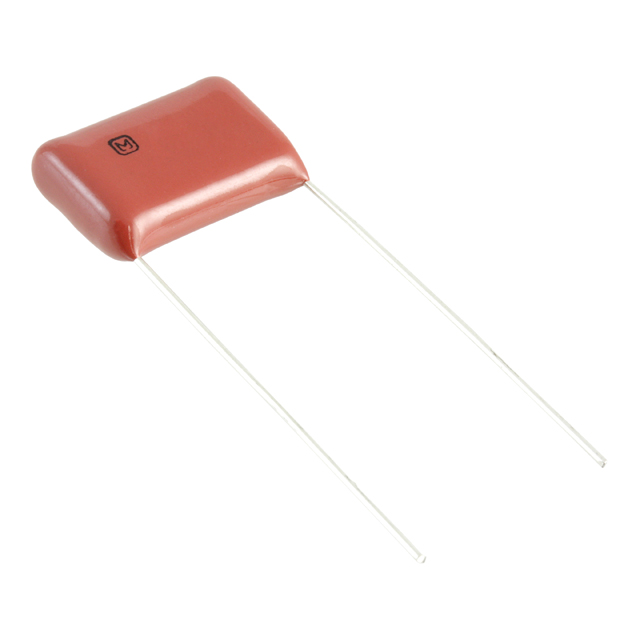

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | ECQ-E1125RJF |
| Manufacturer: | Panasonic |
| Part of Description: | CAP FILM 1.2UF 5% 100VDC RADIAL |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 11582 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | ECQ-E(F) |
| Package | Tape & Box (TB) |
| Part Status | Active |
| Capacitance | 1.2 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.728" L x 0.217" W (18.50mm x 5.50mm) |
| Height - Seated (Max) | 0.701" (17.80mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
Stock Status: 11582
Minimum: 1
Price: $0.43327
