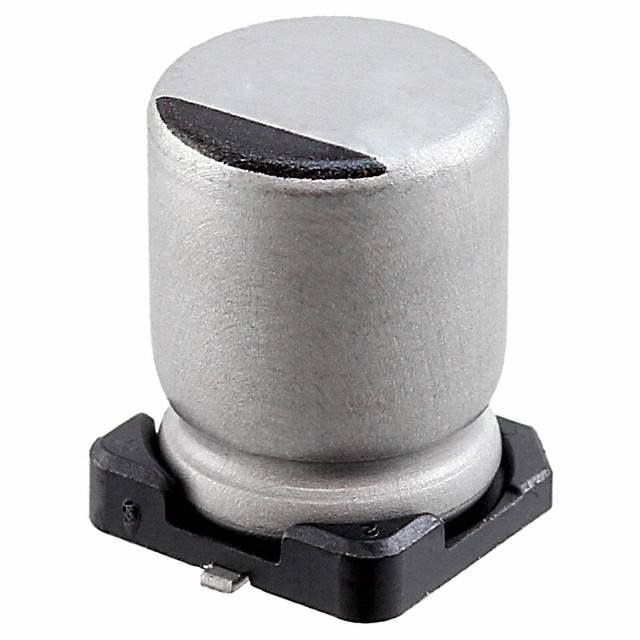

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | UWS1A471MCL1GS |
| Manufacturer: | Nichicon |
| Part of Description: | CAP ALUM 470UF 20% 10V SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 4098 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | UWS |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 290 mA @ 120 Hz |
| Ripple Current @ High Frequency | 377 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Stock Status: 4098
Minimum: 1
Call for price or submit a RFQ
