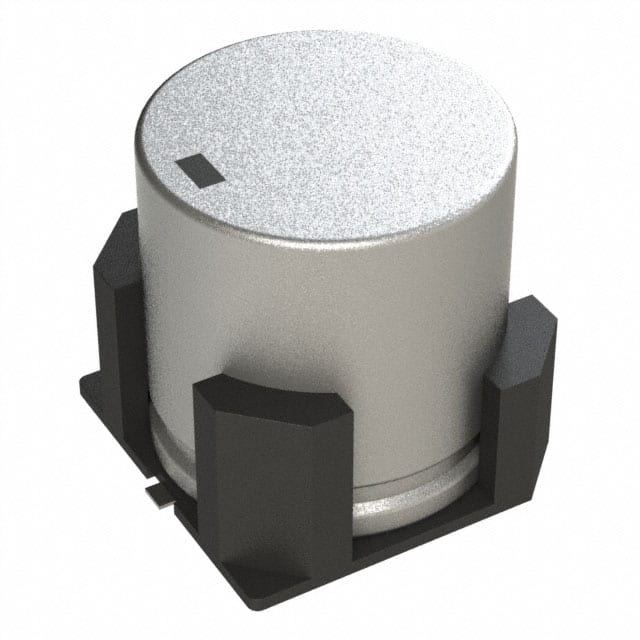

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | EEE-FK1J471AV |
| Manufacturer: | Panasonic |
| Part of Description: | CAP ALUM 470UF 20% 63V SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1771 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | FK, Anti-Vibration |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 82mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 1.0575 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.41 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.673" (17.10mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Stock Status: 1771
Minimum: 1
Price: $2.88000
