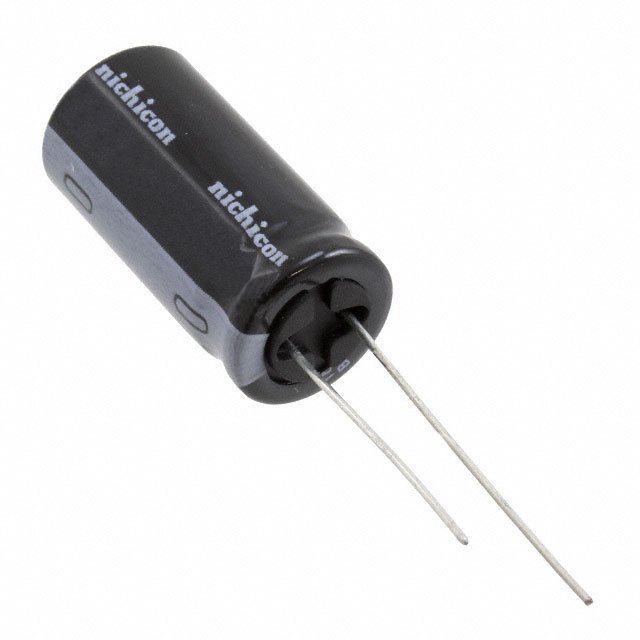

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | UHD1H102MHD |
| Manufacturer: | Nichicon |
| Part of Description: | CAP ALUM 1000UF 20% 50V RADIAL |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 3421 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | UHD |
| Package | Bulk |
| Part Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.258 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.01 A @ 100 kHz |
| Impedance | 21 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Stock Status: 3421
Minimum: 1
Price: $1.48000
