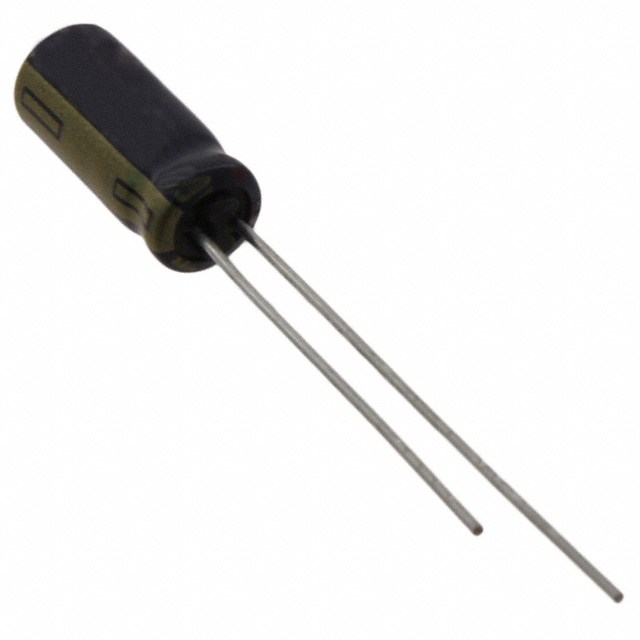

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | EEA-FC1V120B |
| Manufacturer: | Panasonic |
| Part of Description: | CAP ALUM 12UF 20% 35V RADIAL |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 66231 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | FC |
| Package | Tape & Box (TB) |
| Part Status | Active |
| Capacitance | 12 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 78 mA @ 120 Hz |
| Ripple Current @ High Frequency | 120 mA @ 100 kHz |
| Impedance | 950 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Stock Status: 66231
Minimum: 1
Price: $0.07553
