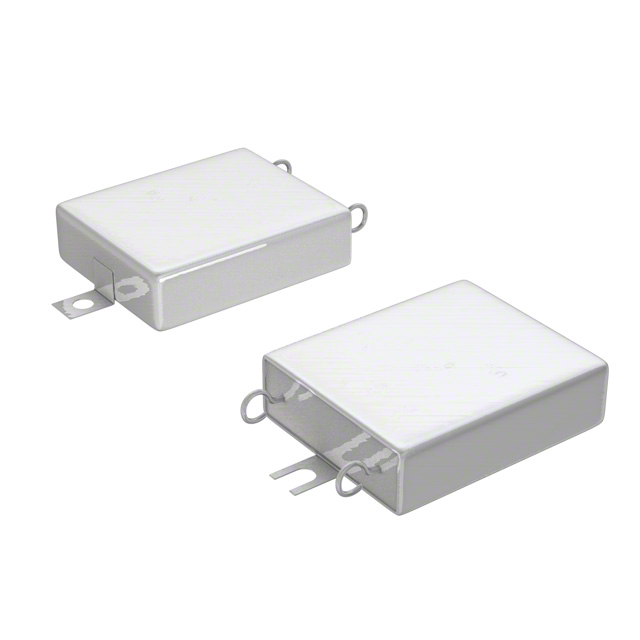

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | HVMLS152M060EK0D |
| Manufacturer: | Cornell Dubilier Electronics |
| Part of Description: | CAP ALUM 1500UF 20% 60V FLATPACK |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 77 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | MLS |
| Package | Bulk |
| Part Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 60 V |
| ESR (Equivalent Series Resistance) | 106mOhm @ 120Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.5 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 1.000" (25.40mm) |
| Size / Dimension | 1.500" L x 1.750" W (38.10mm x 44.45mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | FlatPack, Tabbed |
Stock Status: 77
Minimum: 1
Price: $154.08200
