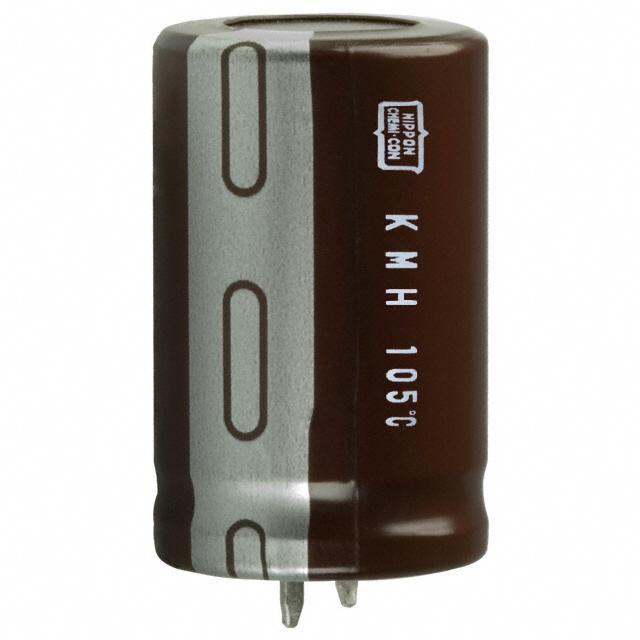

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | EKMH500VSN822MA35T |
| Manufacturer: | United Chemi-Con |
| Part of Description: | CAP ALUM 8200UF 20% 50V SNAP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1250 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | KMH |
| Package | Bulk |
| Part Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 40mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.834 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
Stock Status: 1250
Minimum: 1
Price: $4.11000
