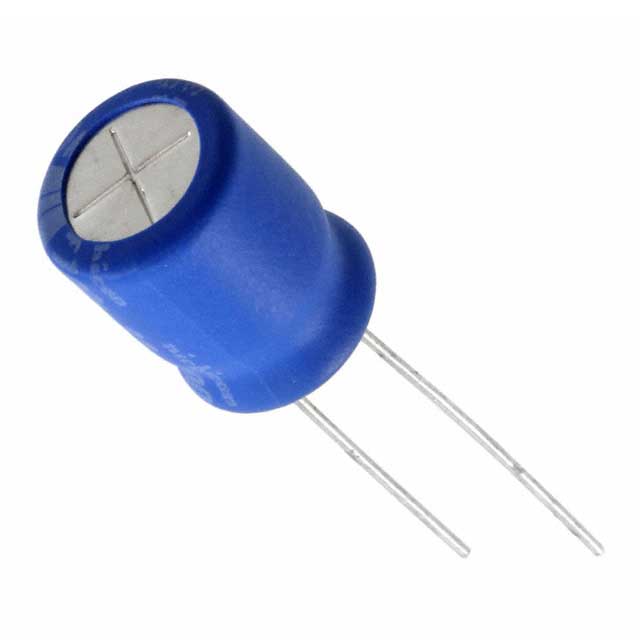

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | UBW1C331MPD1TD |
| Manufacturer: | Nichicon |
| Part of Description: | CAP ALUM 330UF 20% 16V RADIAL |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 4009 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | UBW |
| Package | Cut Tape (CT)Tape & Box (TB) |
| Part Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 340 mA @ 120 Hz |
| Ripple Current @ High Frequency | 680 mA @ 100 kHz |
| Impedance | 100 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Stock Status: 4009
Minimum: 1
Price: $1.26000
