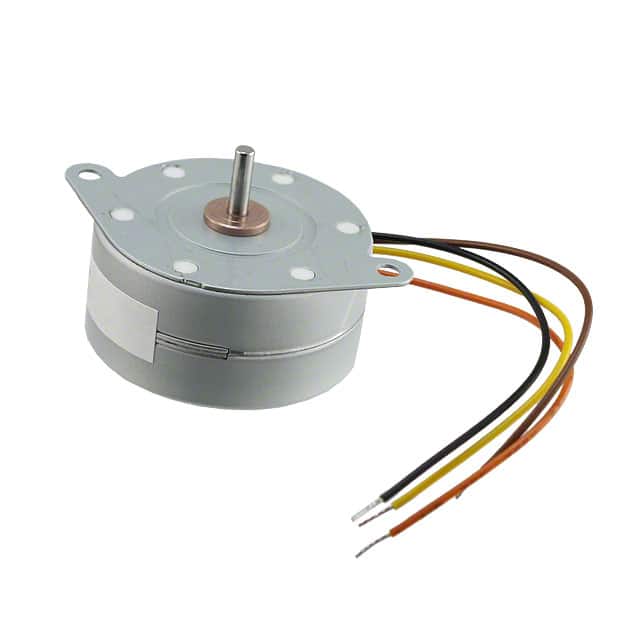

NMB Technologies Corp. / PM42L-048-HHC9

Manufacturer Part Number: PM42L-048-HHC9
Manufacturer: NMB Technologies Corp.
Part of Description: STEPPER MOTOR PM BIPOLAR 24V
Lead Free Status / RoHS Status: Lead Free / RoHS Compliant
Stock Condition: 24 In Stock
Ship From: Hong Kong
Shipment Way: DHL/Fedex/TNT/UPS/EMS
REMARK
Buy the PM42L-048-HHC9 NMB Technologies Corp. on xunyun-ic.com, we are NMB Technologies Corp. Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the PM42L-048-HHC9 within 24 hours,please contact our sales team or send email to zimin@xinyunic.com Hope we can cooperate in the future.

Specification

TypeDescription
SeriesPM
PackageBulk
Part StatusActive
TypePermanent Magnet
Coil TypeBipolar
Voltage - Rated24VDC
Current Rating (Amps)600 mA
Steps per Revolution48
Step Angle7.5°
Accuracy-
Torque - Holding (oz-in / mNm)17.6 / 124
Size / DimensionRound - 1.650" Dia (42.00mm)
NEMA Frame Size-
Diameter - Shaft0.118" (3.00mm)
Length - Shaft and Bearing0.472" (12.00mm)
Mounting Hole Spacing1.950" (49.48mm)
Termination StyleWire Leads
Operating Temperature-
Coil Resistance7 Ohms
FeaturesRound Shaft
