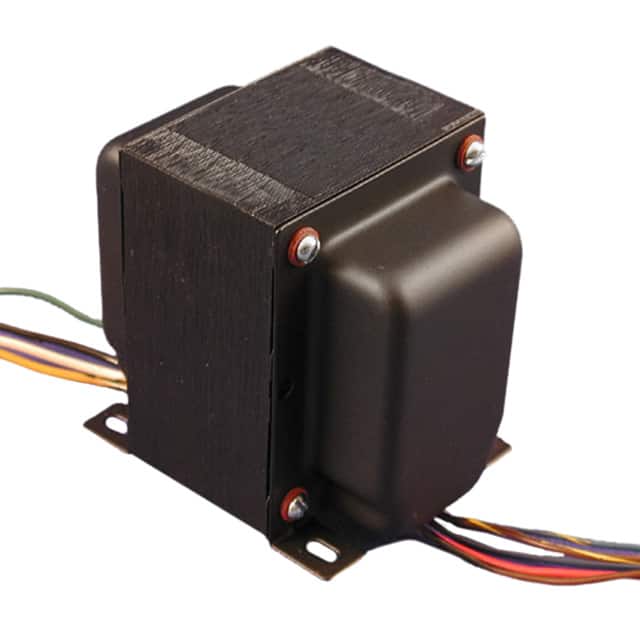

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 1608A |
| Manufacturer: | Hammond Manufacturing |
| Part of Description: | AUDIOPHILE TUBE OUTPUT TRANSFRMR |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 90 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | A |
| Package | Box |
| Part Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 8kCT |
| Impedance - Secondary (Ohms) | 4, 8, 16 |
| DC Resistance (DCR) - Primary | 91.31Ohm, 102.3Ohm |
| DC Resistance (DCR) - Secondary | 321mOhm, 365mOhm, 476mOhm |
| Transformer Type | Push-Pull Audiophile, Ultra-Linear - Tube Output |
| Frequency Range | 30Hz ~ 30kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | 2000V @ 1 Second |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 10W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.750" L x 2.500" W (69.85mm x 63.50mm) |
| Height - Seated (Max) | 3.060" (77.72mm) |
| Termination Style | Wire Leads |
Stock Status: 90
Minimum: 1
Price: $96.51000
